Compact Plug-and-Play Wastewater Treatment System for Pet Hospitals – UV Sterilization & Filtration



Solve your pet hospital’s wastewater problem with our all-in-one plug-and-play treatment unit. Designed specifically for veterinary clinics, grooming salons, and animal shelters, this compact system combines stainless steel mesh filtration, activated carbon adsorption, and high-energy 254nm UV sterilization. It removes hair, debris, odors, drug residues, and destroys 99.99% of pathogens including parvovirus, E. coli, and Salmonella. No chemicals, no civil works – just connect water and power, and it starts working immediately.

Chat Now
Message
Email

Product Details

Product Details

our integrated wastewater treatment unit is built for busy pet hospitals, emergency clinics, and animal rehabilitation centers

Pre-assembled, factory-tested, and ready to run – no construction crew needed.

Our unit arrives fully assembled from our Guangdong factory. Every component – from the internal piping to the UV lamp and control board – is installed and tested before packaging.

What “plug-and-play” means for your clinic:

  • No on-site assembly – No need to connect separate filter housings, UV chambers, or pump stations. Everything is integrated into one compact cabinet.

  • Simple connections – Just connect the inlet hose to your clinic’s wastewater drain (or holding tank pump outlet) and the outlet hose to the municipal sewer or garden area. Then plug into a standard wall socket (110V/60Hz or 220V/50Hz – specify when ordering).

  • Fast installation – A general electrician or your maintenance staff can complete the entire setup in under 30 minutes. We provide a step-by-step video guide and a printed quick-start manual.

If you are considering an RO unit, contact us for an economical water treatment solution today

Advanced UV + Multi-Stage Filtration

Three independent barriers that work together to remove physical, chemical, and biological contaminants.

Unlike simple sediment filters or chemical dosing systems, our unit combines three complementary technologies in a precise sequence:

Stage 1 – filter

  • Captures hair, lint, cat litter residue, surgical cotton, and other coarse solids down to 500 microns.

  • Removable and washable – no replacement cartridges needed.

  • Prevents clogging of downstream components and protects the UV lamp’s quartz sleeve.

Stage 2 – Activated carbon adsorption

  • High-density granular activated carbon (GAC) bed.

  • Adsorbs organic compounds: detergents, disinfectants (chlorhexidine, povidone-iodine residues), pharmaceutical odors, and color.

  • Reduces chemical oxygen demand (COD) by 60–70%, making treated water much cleaner before UV exposure.

  • Carbon media lasts 6–12 months depending on daily flow (replacement kit available).

Stage 3 – High-energy 254nm UV sterilizer

  • UV-C lamp emitting at 254 nm – the optimal wavelength for DNA disruption.

  • Destroys 99.99% of pathogenic microorganisms, including:

    • Canine parvovirus

    • Feline calicivirus

    • Drug-resistant E. coli

    • Salmonella

    • Pseudomonas aeruginosa

    • Cryptosporidium (when UV dose ≥40 mJ/cm²)

  • UV chamber designed for uniform exposure with automatic wiper (optional) to keep quartz sleeve clean.

  • Lamp life: 9,000 hours (≈1 year at 8 hours/day). Replacement lamp available as a standard consumable.

Chemical-Free & Eco-Friendly

Many conventional wastewater treatment methods rely on chlorine tablets, sodium hypochlorite generators, or chemical coagulants. These chemicals:

  • Introduce disinfection byproducts (trihalomethanes, chloramines) into the environment.

  • Require ongoing chemical purchases and safe storage.

  • Pose risks to staff handling concentrated chemicals.

Our approach is different:

  • No chemicals added – Filtration and UV are entirely physical processes.

  • No secondary pollution – The only “consumable” is electricity and the UV lamp (which contains a tiny amount of mercury, properly recyclable).

  • Safe for all environments – Treated water can be discharged into:

    • Municipal sewer systems

    • Landscape irrigation (after carbon stage, safe for ornamental plants)

    • Greywater recycling systems (with optional post-UV polishing)

China Factory Direct – Best Value

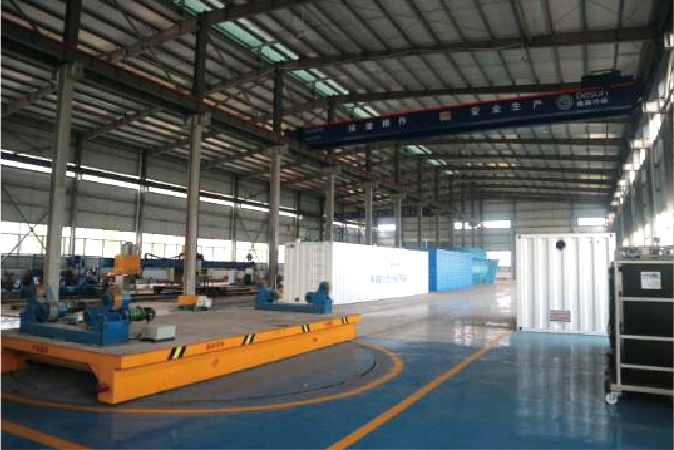

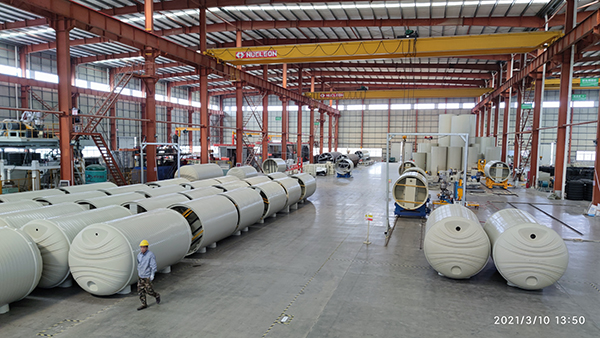

Our factory is located in  Guangdong – the heart of China’s water treatment equipment manufacturing cluster. We design, produce, and test every unit under one roof.

What “factory direct” means for your bottom line:

Cost component Typical European/US brand Our factory-direct price
Manufacturing High labor & overhead Efficient, automated line
Importer margin +25–35% None
Distributor margin +20–30% None
Retail markup +30–50% None
Final price to you $8,000–15,000 $3,800–6,200

You save 40–60% for the same (or better) specifications.

Low Maintenance, Smart Alerts

Designed for busy clinic staff – not dedicated technicians.

We know you don’t have a full-time water engineer on payroll. That’s why every component is chosen for long life and easy service.

Daily operator effort: zero.
The unit runs fully automatically. When wastewater flows in, the treatment sequence starts. When flow stops, the unit idles (UV lamp may stay on or cycle – user selectable).

Routine maintenance schedule (simple):

Task Frequency Time needed Who can do it
Rinse mesh filter Monthly 5 minutes Any staff
Check carbon bed (visual inspection) Every 3 months 2 minutes Any staff
Replace UV lamp Annually (9,000 hours) 10 minutes Electrician or trained staff
Replace activated carbon Every 12–24 months 30 minutes Plumber or our video guide

Suitable for different kinds of clinic and pet hospital

 Busy urban pet hospital (80+ pets/day)
A high-volume clinic in Bangkok installed our unit behind their treatment room. Previously they faced monthly fines for untreated wastewater. With our plug-and-play system, they now discharge compliant water directly into the municipal sewer. The unit runs silently, requires no daily operator attention, and fits in a 1m x 1m corner.

🐩 High-end pet grooming & spa
Luxury grooming salons use chemical shampoos, conditioners, and disinfectants – all ending up in the drain. Our system removes surfactants and chemical oxygen demand (COD) so the effluent won’t pollute local waterways. One salon in Dubai added the unit to earn “Green Business” certification, attracting environmentally conscious customers.

🐕 Emergency animal clinic (24/7 operation)
For clinics that never sleep, reliability is key. Our system includes automatic alarm alerts for lamp failure or full filter – no staff training needed. Power interruption? The unit resumes auto-mode once power returns.

🦴 Veterinary teaching hospital
University veterinary hospitals generate complex wastewater from surgery, dentistry, and isolation wards. Our system handles variable flow rates and high pathogen loads, providing safe effluent for on-site recycling (e.g., toilet flushing or garden irrigation).

🐇 Small animal shelter / rescue center
Non-profits and shelters operate on tight budgets. Our low-maintenance, low-energy unit (daily power <1.5 kWh) gives them professional-grade treatment without expensive service contracts. We even offer NGO discounts.

Why Choose US

🏭 1. We Are the Manufacturer – Not a Trader

Located in Guangdong – China’s equipment manufacturing hub.

Many sellers on the market are trading companies who buy from factories and add 30–50% markup. We are the actual factory. You deal directly with our production team, quality control staff, and export specialists.

What this means for you:

  • Lower price – No middleman margins. Save 40–60% compared to European/US brands.

  • Full control over quality – We test every unit before it leaves our workshop.

  • Fast customization – Need a different inlet position? A specific voltage? Your logo on the panel? We can do it in days, not months.

  • Transparent communication – When you have a technical question, you talk to our engineers, not a sales agent who doesn’t understand the product.
