Specialized Arsenic & Heavy Metal Removal Capability for Peru Mining Applications
Mining operations in Peru, especially gold and copper mining areas, often face complex groundwater challenges including naturally occurring arsenic, heavy metals and other dissolved contaminants.
As part of Guanya’s customized containerized mining water treatment solutions, we integrate advanced adsorption technologies when required by raw water conditions to improve treatment efficiency and ensure stable water quality.
SY02-P Granular Ferric Hydroxide Adsorbent Technology
SY02-P is a high-performance granular ferric hydroxide adsorption media based on:
Fe(OH)₃ / β-FeOOH active components
It is designed for the selective adsorption and removal of inorganic arsenic and other contaminants from water.
The material provides a large specific surface area of approximately:
300 m²/g
which creates abundant active adsorption sites for contaminant removal.
Working Principle
Surface Adsorption Mechanism
Unlike traditional chemical precipitation processes, SY02-P removes contaminants through surface adsorption.
The hydroxyl groups on ferric hydroxide surfaces interact with dissolved contaminants, forming stable adsorption complexes.
This mechanism provides effective removal of:
✔ Arsenic As(III)
✔ Arsenic As(V)
✔ Phosphate
✔ Heavy metals including lead, copper, zinc and other contaminants
According to the product technical data, SY02-P can adsorb inorganic arsenic (+3/+5), phosphate ions and various heavy metal pollutants through adsorption mechanisms.
Application in Peru Mining Water Treatment
For Peru mining projects, Guanya combines SY02-P adsorption technology with complete containerized treatment systems:

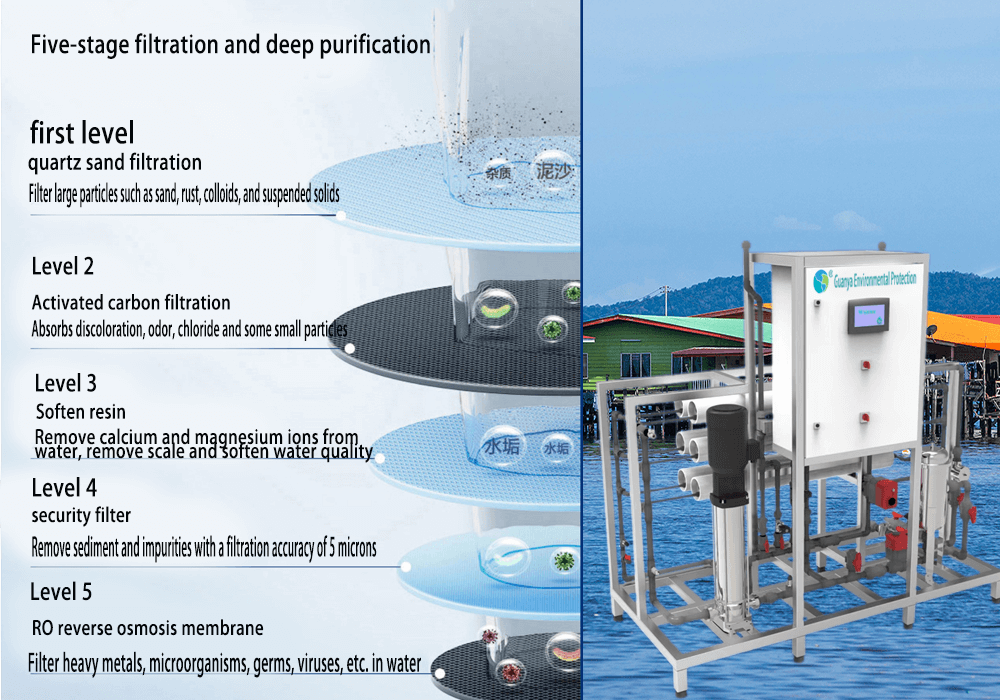

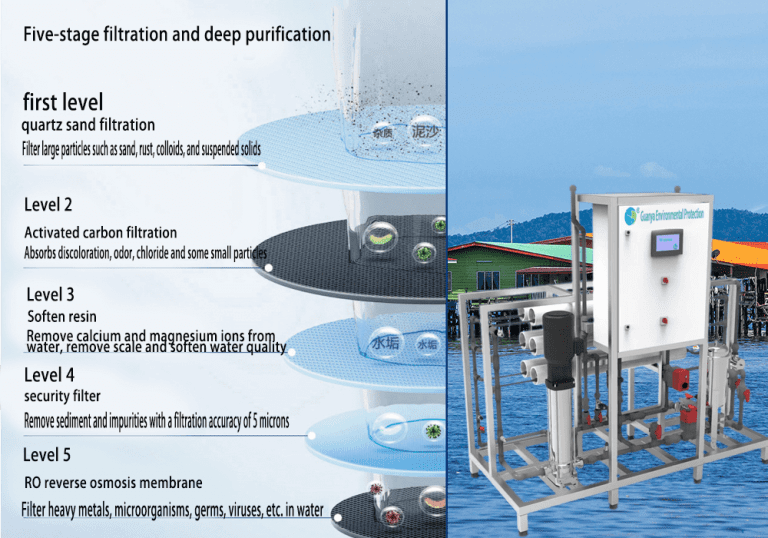

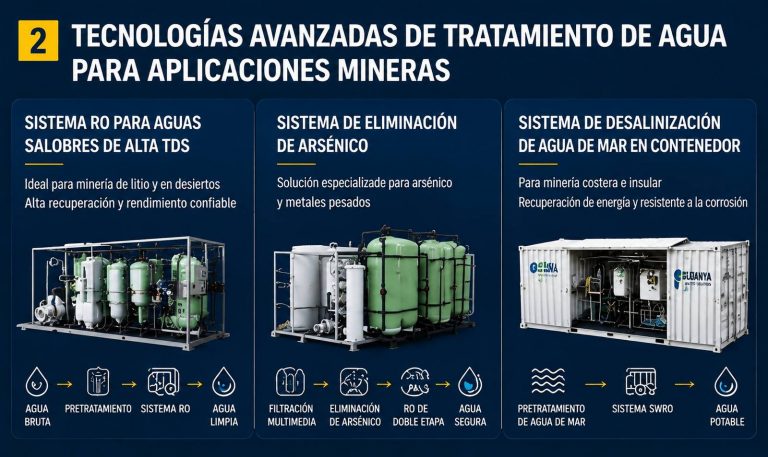

Typical Process Flow
Raw Groundwater
↓
Multi Media Filtration
↓
Oxidation Treatment
↓
Ferric Hydroxide Adsorption Unit
↓

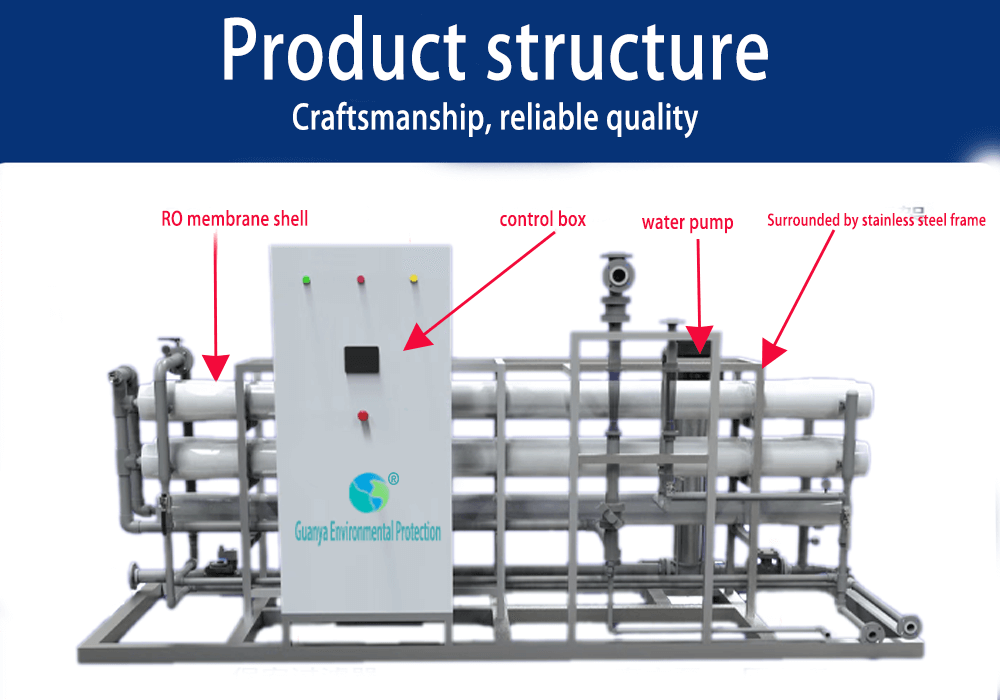

RO Membrane System
↓
Disinfection & Final Water Treatment
This integrated approach allows the system to address:

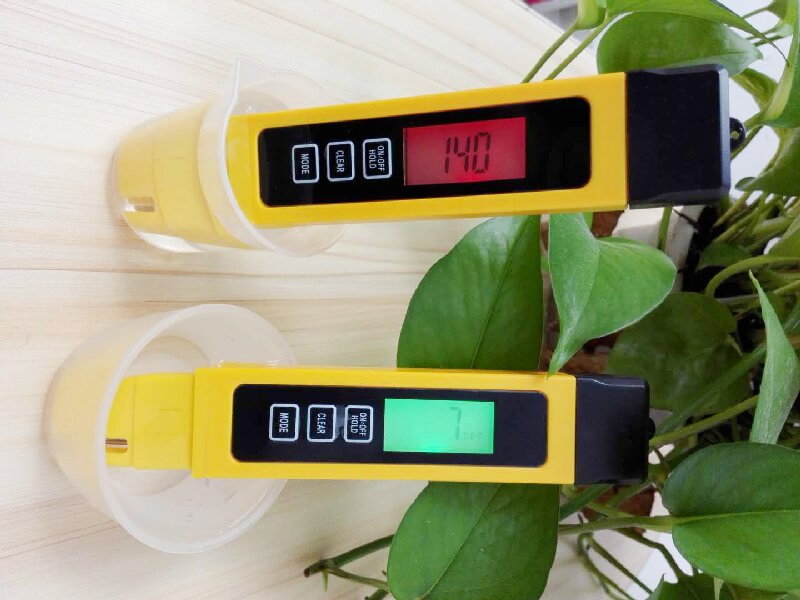

High TDS Groundwater
Reduction of dissolved salts through RO technology.
Arsenic Contamination
Advanced adsorption technology for As(III)/As(V) removal.
Heavy Metal Challenges
Additional treatment capability for complex mining water conditions.
Technical Advantages of SY02-P Technology
High Adsorption Performance
Large surface area:
≈300 m²/g
Provides high-density active adsorption sites.
Effective Arsenic Removal
Designed for:
- Arsenic (III)
- Arsenic (V)
Reference adsorption capacity:
4–14 g/kg (As) depending on operating conditions.
Wide Operating Range
Recommended operating conditions:
| Parameter |
Reference Value |
| pH Range |
5–9 |
| Optimal pH |
6.0–7.2 |
| Operating Temperature |
5–40°C |
| Empty Bed Contact Time |
3–6 min |
| Filtration Velocity |
8–20 BV/h |
The technical data indicates that adsorption performance reaches optimal levels when water pH is approximately 6.0–7.2.

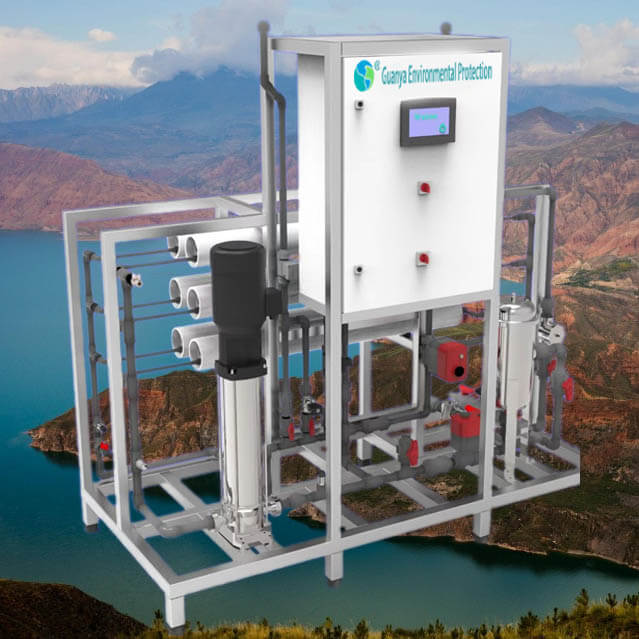

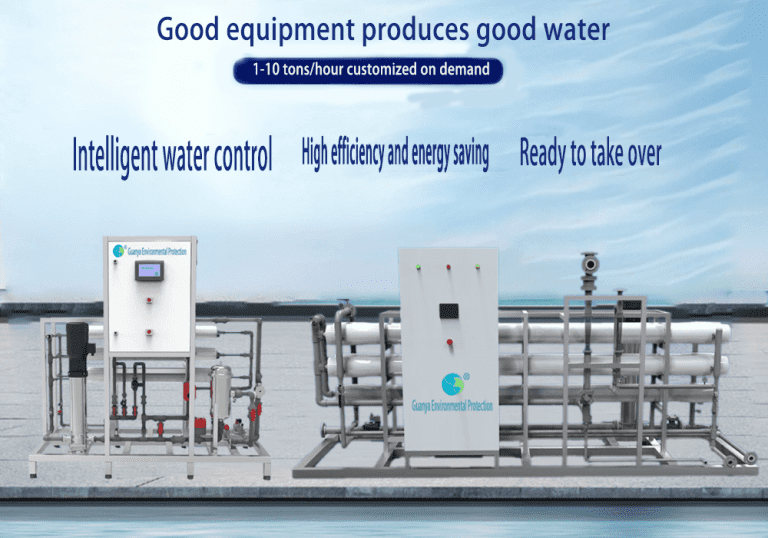

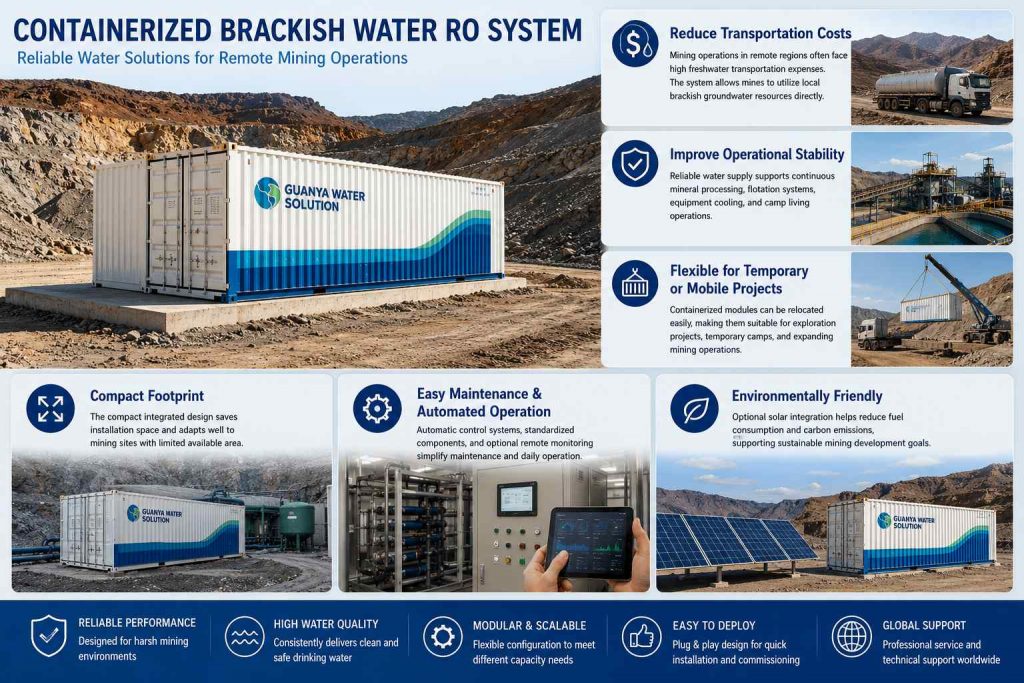

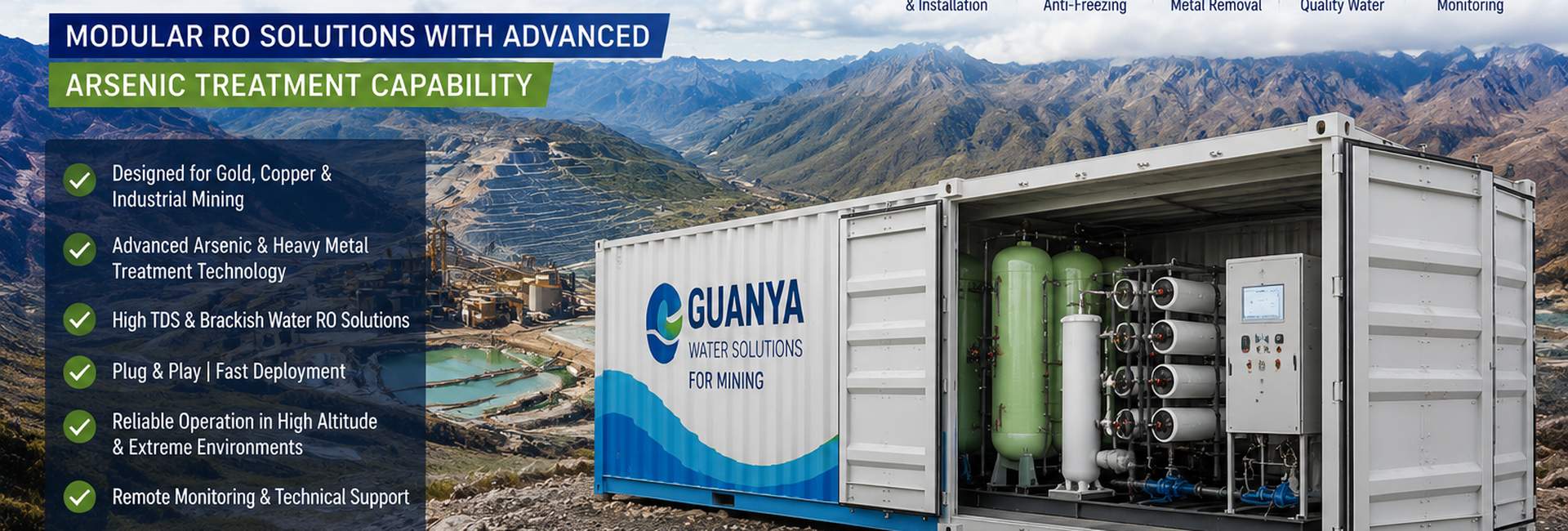

Integrated into Guanya Containerized Mining Water Treatment Systems
SY02-P adsorption technology is not a standalone product.
It is integrated into Guanya’s customized mining water treatment platforms:

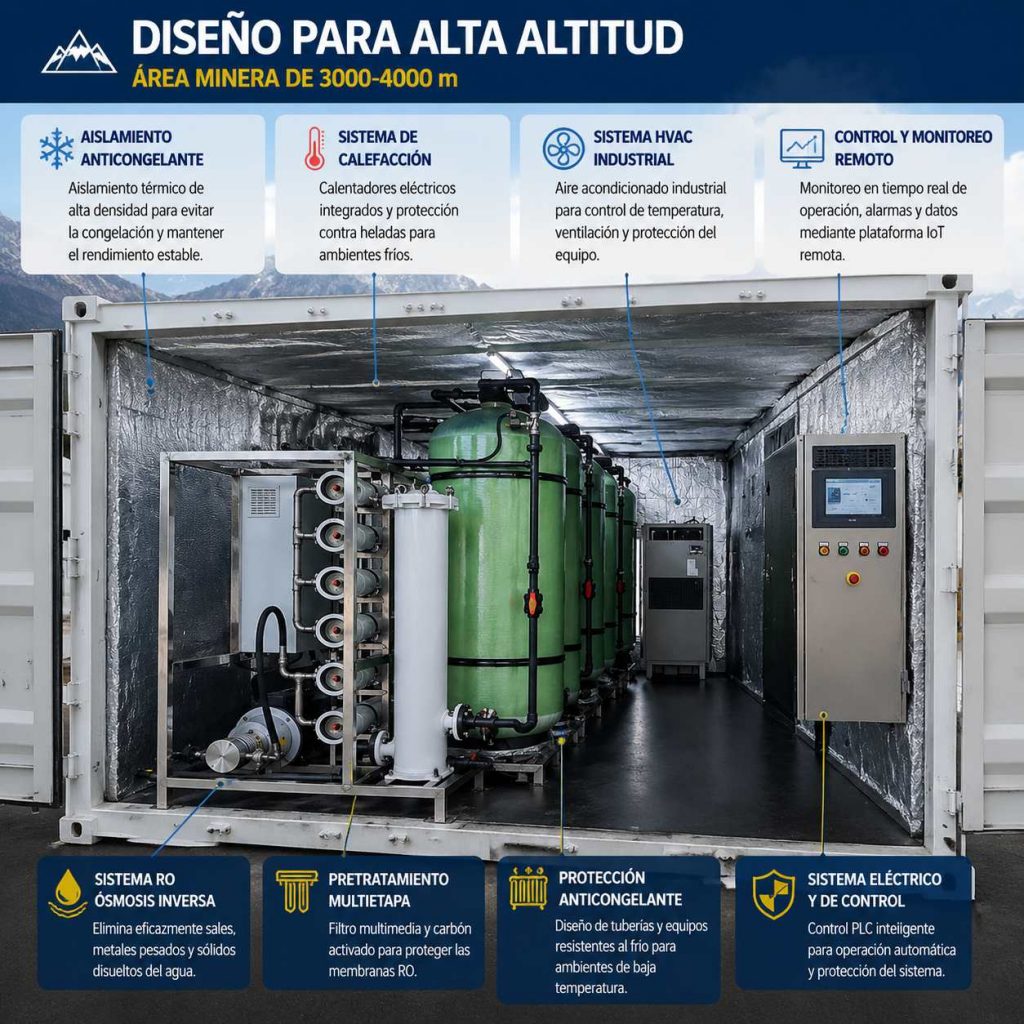

Containerized Plug & Play Design

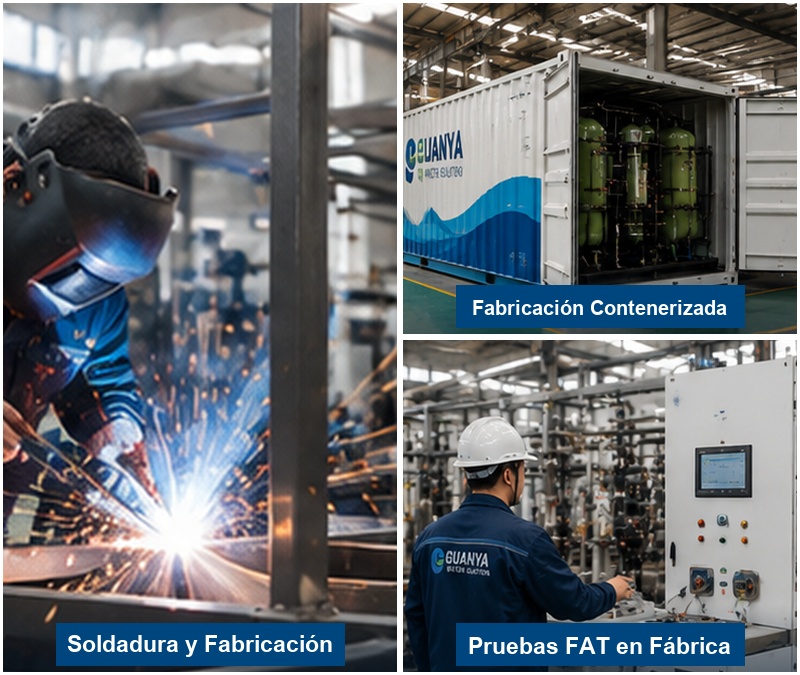

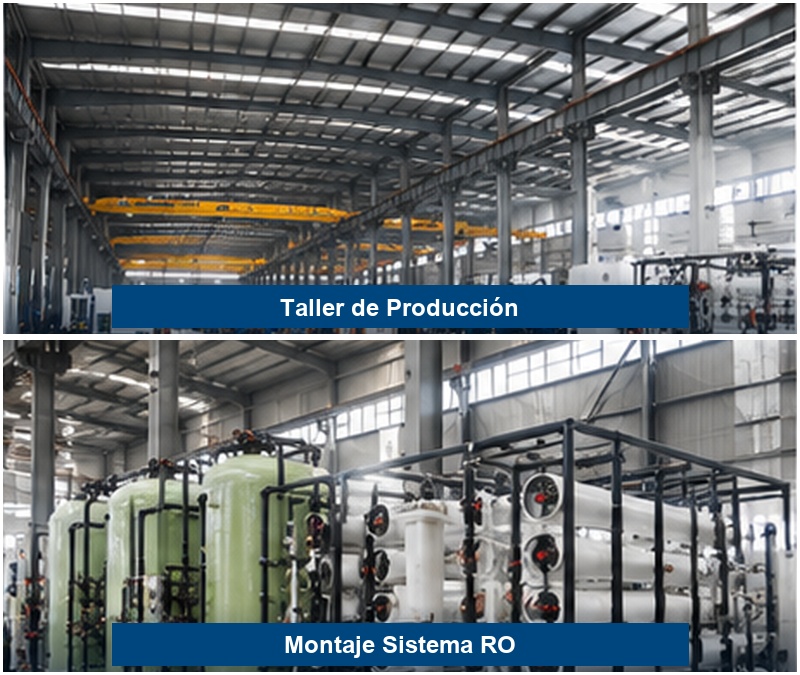

✔ Factory assembled in China
✔ Integrated filtration and RO system

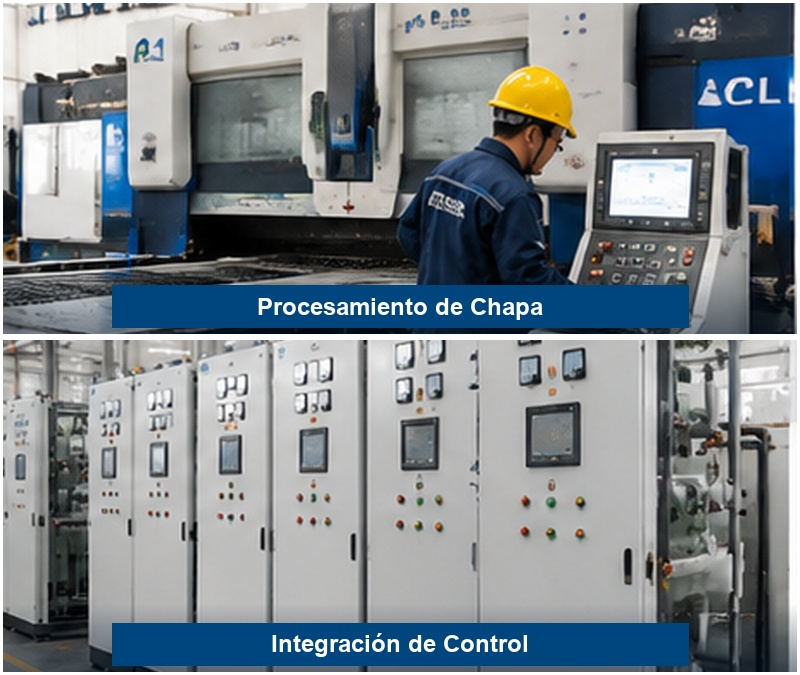

✔ Electrical control system included
✔ Factory FAT testing before shipment
✔ Rapid deployment at remote mining sites
Why This Technology Matters for Peru EPC Projects
For local EPC contractors, Guanya provides:
Complete Engineering Capability
From:
Raw water analysis
↓
Process design
↓

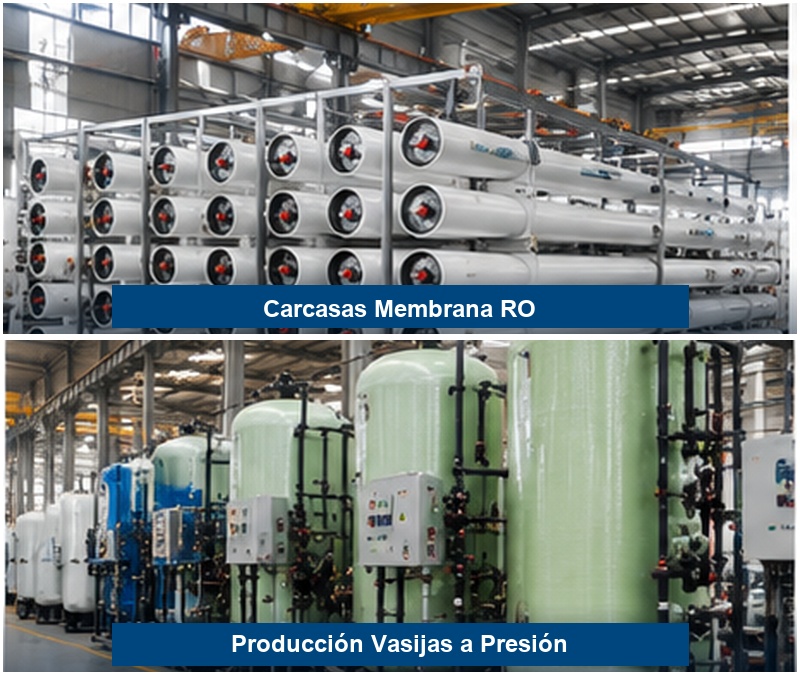

Equipment manufacturing
↓
Factory testing
↓
Mining site deployment
Flexible Treatment Configuration
Depending on project requirements, Guanya can combine:
- Multimedia filtration
- Ferric hydroxide adsorption
- RO purification
- UV / disinfection
- Remote monitoring systems
to develop customized solutions for:
✔ Gold mines
✔ Copper mines
✔ Mining camps
✔ Remote industrial sites
