The ozone and gravity fed stainless steel water filter is our new innovation products, the traditional gravity fed stailess steel water intergrated with ozone disinfection function.

Product Overview

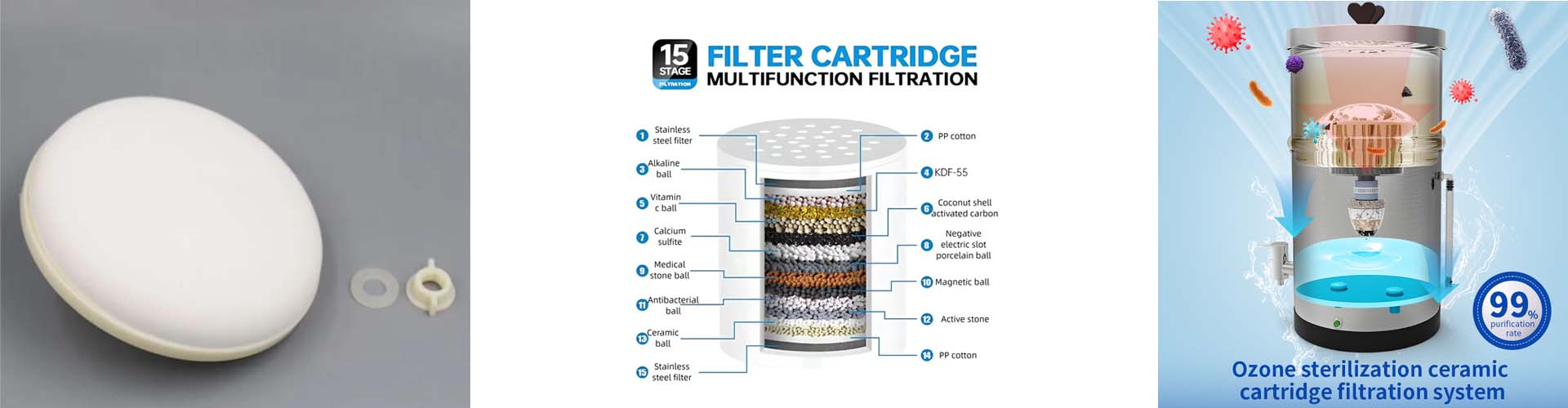

The gravity-driven stainless steel water filter is a zero-energy water purification device that relies on the water’s own weight to drive the filtration process. It purifies tap water, rainwater, well water, and other Class III and above surface water into drinking water without the need for power, pumps, or pressurized equipment. The device consists of a two-layer 304 stainless steel barrel, a washable ceramic membrane filter, and a dedicated ozone sterilization module with 15 filter layers. It is widely used in homes, schools, hospitals, camping, RVs, and emergency rescue settings.

Working Principle

1. Gravity-fed: After raw water is poured into the upper barrel, the liquid level difference creates a natural pressure head of 0.3–0.6 m. Water flows from top to bottom, passing through the ceramic membrane, 15 filter layers, and then ozone, ultimately producing clean water in the lower barrel.
2. Ozone sterilization: A micro ozone generator is integrated at the bottom of the barrel. 0.05–0.2 mg/L of ozone is evenly dissolved in the water through a microporous aeration disk. Within 2-3 minutes, it can quickly destroy the cell membranes of bacteria and viruses, and the inactivation rate of pathogens such as Escherichia coli, cholera, and Legionella is greater than 99.5%. At the same time, pesticide residues and odorous organic matter are oxidized.

Core Advantages of Guanya Environmentally Friendly’s Stainless Steel Filter Cartridge

1. 1. Uniquely designed ozone sterilization and disinfection function: ozone releases a 99.99% removal rate for various bacteria, including Salmonella enterica, Staphylococcus aureus, and E. coli.
   2. Gravity filtration and a built-in battery for the ozone function allow for use without electricity, including during floods and earthquakes, to meet emergency water needs.
   3. Corrosion Resistance: Made of food-grade 304 material, it is acid-, alkali-, and chloride-resistant, rust-resistant, and has a service life of over 20 years.
   4. High Strength: Withstands impacts from outdoor transportation, earthquakes, and falling rocks, without breaking.
   5. Easy Cleaning: The stainless steel filter cartridge resists dirt and can be rinsed directly with water, meeting emergency recycling needs. 6. No excessive maintenance required, easy to clean, and the two-stage physical filter element is flushable and replaceable, resulting in low replacement costs

Detailed Explanation of Ozone Sterilization Function

1. Ozone effectively removes organic and chemical pollutants. It oxidizes chromophores in water, such as phenols, diazo, and azo compounds, disrupting their structure. It possesses highly effective bactericidal properties, rapidly destroying the cell walls and membranes of microorganisms such as bacteria, viruses, fungi, and spores, thereby achieving sterilization and disinfection. Its bactericidal power is hundreds of times greater than that of chlorine, and it sterilizes rapidly. Furthermore, ozone effectively removes pesticide residues and produces no harmful disinfection byproducts during the disinfection process.

Typical Application Scenarios

1. Daily Home Use: Place under the kitchen or on a countertop to provide low-bacteria, low-heavy-metal soft water for infant formula and pets, eliminating the risks of residual chlorine, lead, and copper in tap water.
2. Outdoor Camping: The compact 2.25-gallon barrel fits in the trunk of a car. With the folding stand, river water can be filtered for 30 minutes before drinking, solving the problem of refilling water for hiking, fishing, and RVing.
3. Disaster Emergency: When an earthquake or flood shuts down a water plant, the gravity water filter can purify cellar and stream water to drinking standards without electricity. A single filter cartridge can produce 5,000 liters of safe water, meeting the basic needs of a family of five for one month.
4. Schools and Hospitals: In rural clinics and boarding schools with unstable voltage or a shortage of maintenance personnel, the stainless steel gravity water filter can serve 50–100 people per day as a terminal water purification station, significantly reducing the incidence of waterborne diseases such as diarrhea. 5. Catering and Brewing: Small cafes and craft breweries use ozone to remove chlorine and organic matter from water, enhancing the taste of their drinks. The stainless steel exterior also meets food production hygiene standards.

For more information, please contact us for technical details.
